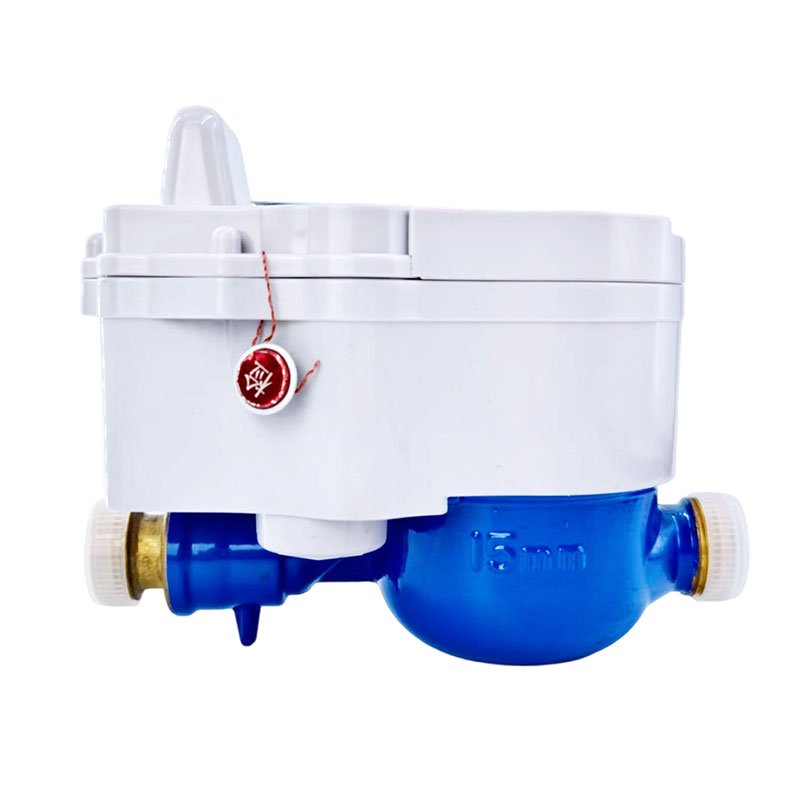

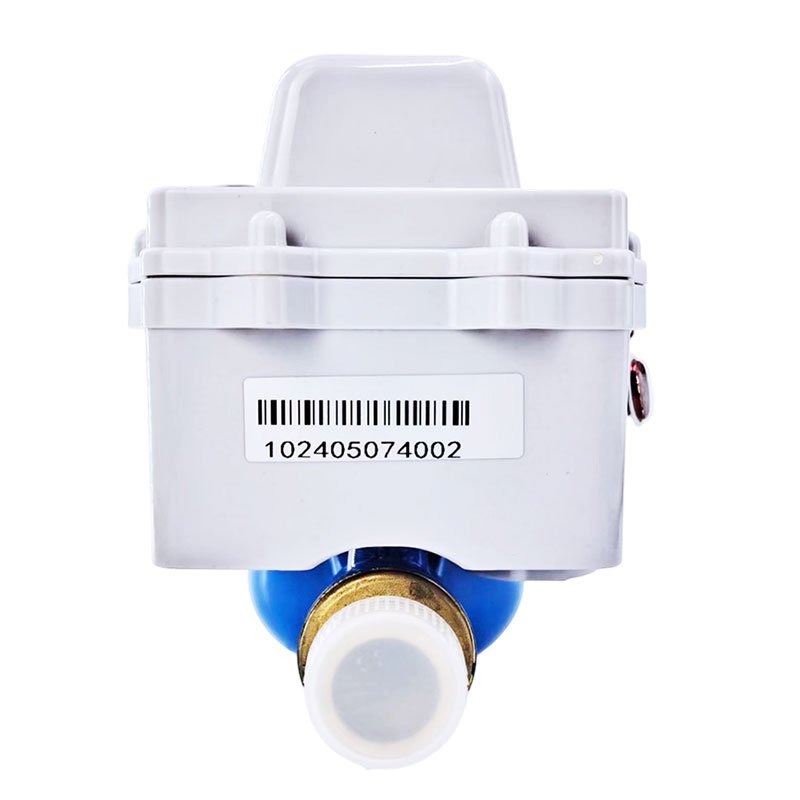

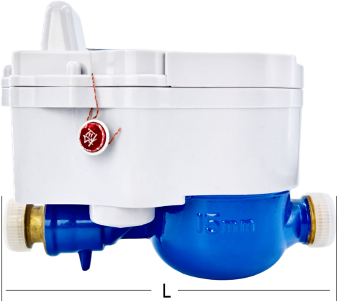

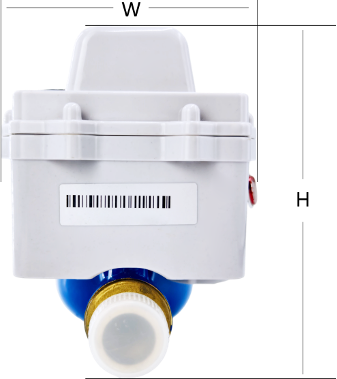

LoRa Valve-Controlled Water Meter

Product Features

• Easy Deployment: No wiring required; simple installation and commissioning.
• Low Implementation Cost: No wiring cost; uses license-free frequency bands with stable signals and convenient meter reading.
• Long Reading Distance: Adopts multi-node spread spectrum technology and multi-level relay routing, enabling a large meter reading radius.
• Battery Service Life: Low-power design with real-time standby; battery service life ≥ 8 years.
• Remote Transmission & Control: Built-in valve, supporting remote data transmission and remote valve control.

 Main Technical Parameters

 Flow Range

 Wireless Technical Indicators

Relative Error

• 1 For the low flow range (from minimum flow Q1, inclusive, to transitional flow Q2, exclusive), the maximum allowable error is ±5%.
• 2 For the high flow range (from transitional flow Q2, inclusive, to overload flow Q4, inclusive):
  • Maximum allowable error is ±2% when water temperature ≤ 30℃;
  • Maximum allowable error is ±3% when water temperature ＞ 30℃.

Other Parameters

• Operating Temperature:
  • Cold water meter: (0.1～30)℃
  • Hot water meter: (0.1～90)℃
• Working Pressure: ≤1.0MPa
• Pressure Loss: ≤0.063MPa
• Installation Environment: Class B – Fixed IC card water meter installed indoors
• Electromagnetic Environment: E1 – Residential, commercial, and light industrial areas
• Operating Current: Static current ＜ 19μA
• Flow Profile Sensitivity Class: U10, D5

 Dimensional Drawing
