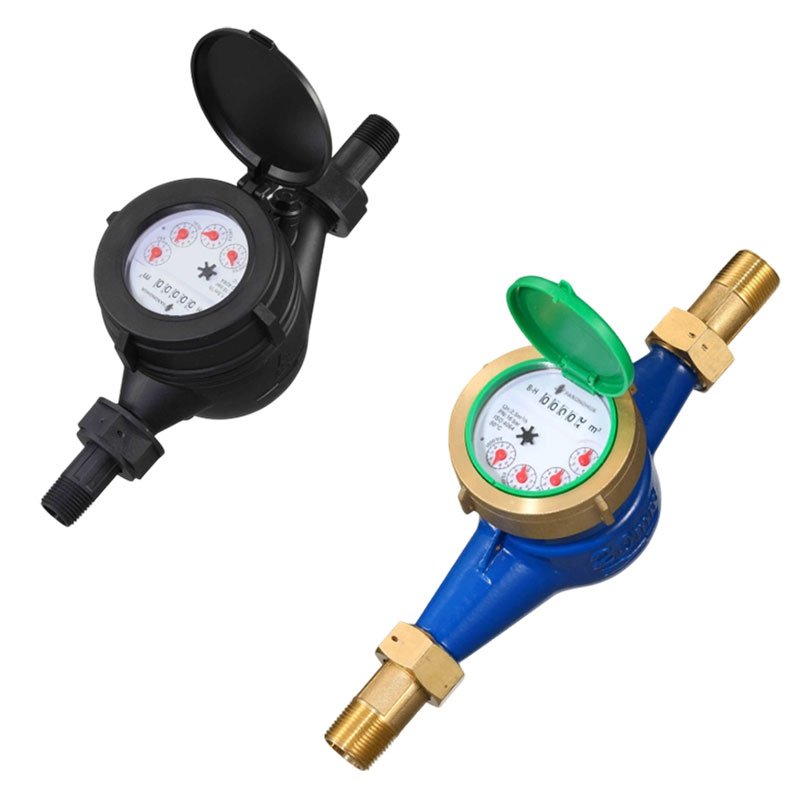

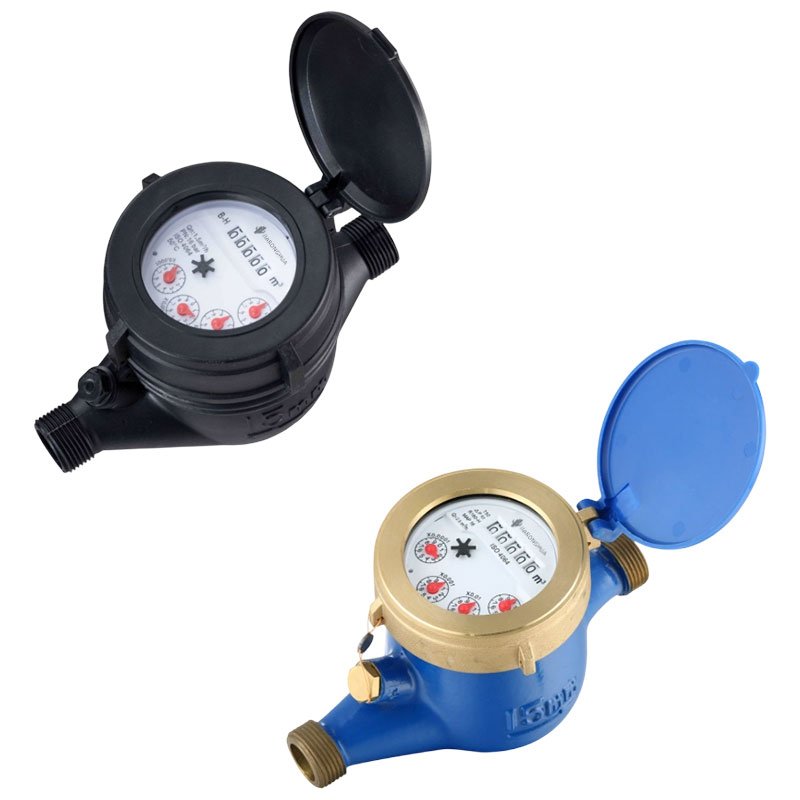

Multi-Jet Dry Type Water Meter

Application:

Multi-Jet dry type water meter is suitable for measuring the consumption of cold or hot water in household or small commercial and industrial settings, where there is a need to accurately record low flow rates.

Features:

360° rotating lid
The register is isolated from water, ensure clear readings over a long period of use
A dry top Multi-jet design, which is simple, accurate, and has a wide flow range
Magnetic drive, lower transimission resistance, Not affected by an external magnetic field
The clockwork is vacuum-sealed to prevent water condensation inside, ensure clear readings over a long period of use
Additional Inlet strainer provide better resistance to water impurities
Accessories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers

Customized Features:

Body material: Brass/Nylon Plastic/Cast Iron/Stainless Steel
Body external regulation device optional
Accuracy:R100/R160
Size:15~50mm
HorizontalVertical
Cold/Hot water
Pulse output optional

Working Condition:

Water temperature≤50℃ (Hot water meter≤90℃)
Water pressure≤1MPa Or 1.6MPa
△P≤63

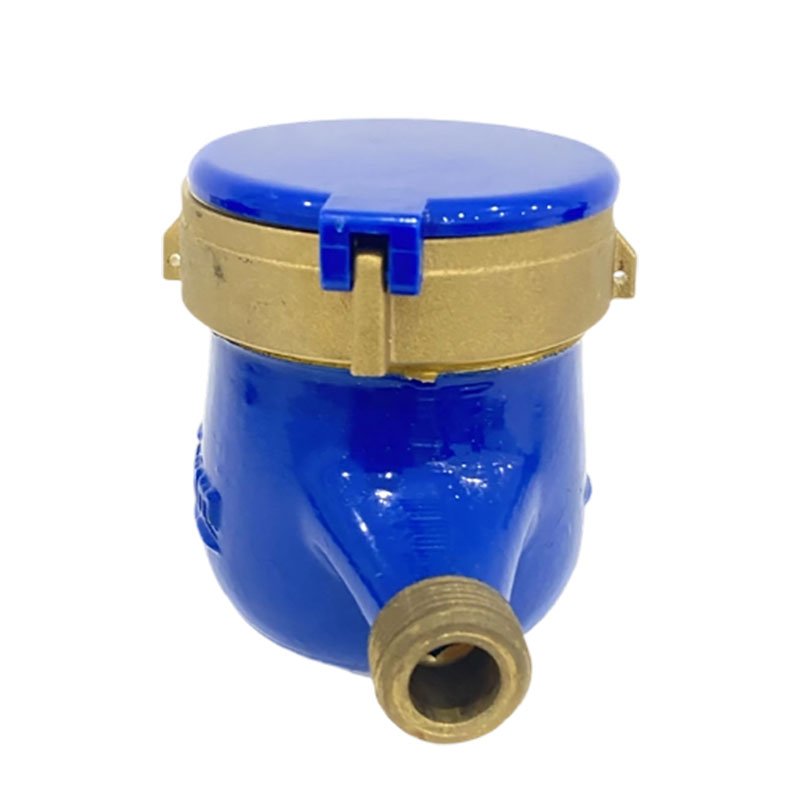

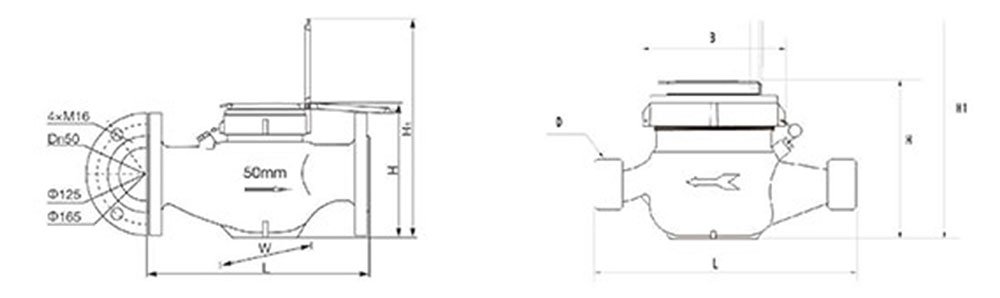

Dimension:

Data based on brass body

Type	Nominal Size (mm)	Size(inch)	Length	Width	Height	Connection
LXSG-15	15	1/2″	165	95	115	G3/4B
LXSG-20	20	3/4″	195	95	115	G1B
LXSG-25	25	1″	225	100	120	G1 1/4B
LXSG-40	40	1-1/2	245	120	160	G2B
LXSG-50	50	2″	280	130	190	Flange Connection

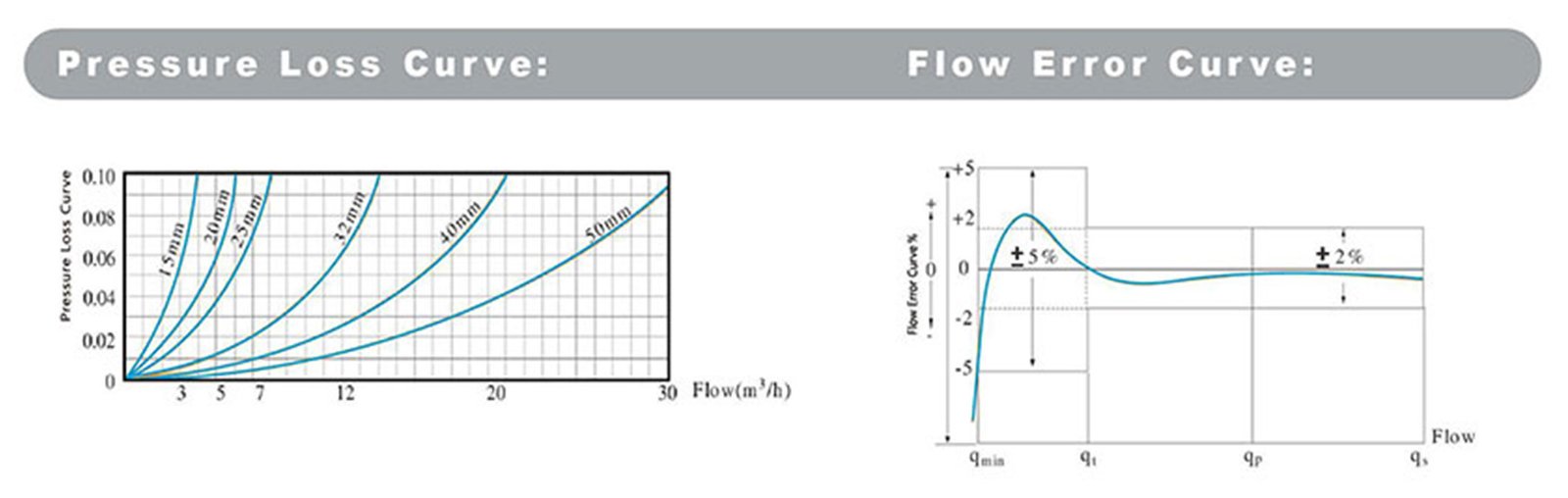

Accuracy:

From minimum flow-rate(Q1)inclusive,to transitional fow-rate(Q2)exclusive:±5%
From transitional flow-rate(Q2)inclusive,to overload fow-rate(Q4)exclusive:±2%
Hot water meter±3%

Technical Data:

Model Number		Unit	LXSG-15	LXSG-20	LXSG-25	LXSG-40	LXSG-50
Nominal Size		mm(inch)	15(1/2″)	20(3/4″)	25(1″)	40(1-1/2″)	50(2″)
Overload Flow Rate(Q4)		m3h	3.125	5	7.875	20	31.25
Permanent Flow Rate(Q3)		m3h	2.5	4	6.3	16	25
R=80	Transitional Flow Rate(Q2)	m3h	0.05	0.08	0.126	0.032	0.5
R=80	Minimum Flow Rate(Q1)	m3h	0.0312	0.05	0.0787	0.2	0.3125
R=100	Transitional Flow Rate(Q2)	m3h	0.04	0.064	0.1	0.256	0.4
R=100	Minimum Flow Rate(Q1)	m3h	0.025	0.04	0.063	0.16	0.25
R=160	Transitional Flow Rate(Q2)	m3h	0.025	0.04	0.063	0.16	0.25
R=160	Minimum Flow Rate(Q1)	m3h	0.015	0.025	0.039	0.1	0.156
Min.Reading		m3	0.0001	0.0001	0.0001	0.0001	0.0001
Max.Reading		m3	99999	99999	99999	99999	99999
Temperature class		T℃ T50/T90
Water Pressure classes		MPa 1.0/1.6
Pressure-loss classes		△P63
Instalation Position		HORIZONTAL
